Multi-plan V

This model will give you the option to store a maximum of garments near the ceiling liberating the floor space beneath at the same time. Only one side of the conveyor comes down to the floor level creating a V section of minimal size for loading and unloading.


Model complete specifications

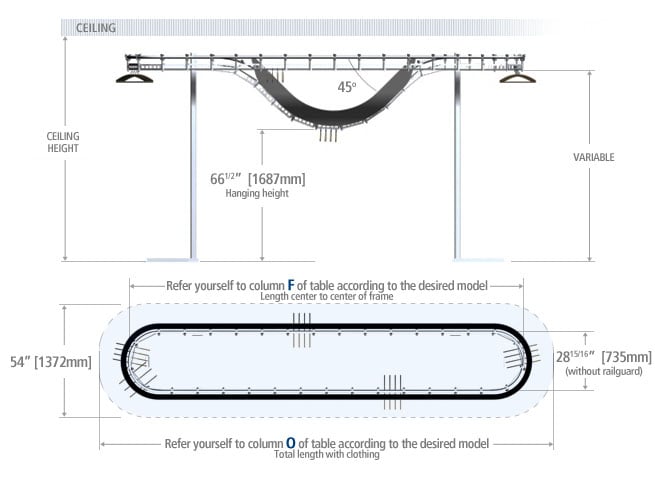

convoyeur-vetements-modele-multi-plan-v



  F* O*
Model Hanging length
Feet (m)*
Approx. Garments capacity * Machine Length
Inches (mm)
Total Length with garments
Inches (mm)
NPF-470-VD 47 (14.3) 564 260  5/16 (6612) 287 (7282)
NPF-490-VD 49 (14.9) 588 272 5/16 (6917) 299 (7587)
NPF-510-VD 51 (15.5) 612 284 3/8 (7223) 311 (7893)
NPF-530-VD 53 (16.1) 636 296 7/16 (7589) 323 (8199)
NPF-550-VD 55 (16.8) 660 308 7/16 (7835) 335 (8505)
NPF-570-VD 57 (17.4) 684 320 1/2 (8141) 347 (8811)
NPF-590-VD 59 (18) 708 332 9/16 (8447) 359 (9117)
NPF-610-VD 61 (18.6) 732 344 9/16 (8753) 371 (9422)
NPF-630-VD 63 (19.2) 756 356 5/8 (9058) 383 (9728)
NPF-650-VD 65 (19.8) 780 368 11/16 (9364) 395 (10034)
NPF-670-VD 67 (20.4) 804 380 11/16 (9670) 407 (10340)
NPF-690-VD 69 (21) 828 392 3/4 (9976) 419 (10646)
NPF-710-VD 71 (21.6) 852 404 13/16 (10282) 431 (10952)
NPF-730-VD 73 (22.2) 876 416 13/16 (10588) 443 (11257)
NPF-750-VD 75 (22.8) 900 428 7/8 (10893) 455 (11563)
NPF-770-VD 77 (23.5) 924 440 15/16 (11199) 467 (11869)
NPF-790-VD 79 (24.1) 948 452 15/16 (11505) 479 (12175)
NPF-810-VD 81 (24.7) 972 465 (11811) 491 (12481)
NPF-830-VD 83 (25.3) 996 477 1/16 (12117) 503 (12787)
NPF-850-VD 85 (25.9) 1020 489 1/16 (12423) 515 (13093)
NPF-870-VD 87 (26.5) 1044 501 1/8 (12728) 527 (13398)
NPF-890-VD 89 (27.1) 1068 513 3/16 (13034) 540 (13704)
NPF-910-VD 91 (27.7) 1092 525 3/16 (13340) 552 (14010)
NPF-930-VD 93 (28.3) 1116 537 1/4 (13646) 564 (14316)
NPF-950-VD 95 (28.9) 1140 549 5/16 (13952) 576 (14622)
NPF-970-VD 97 (29.6) 1164 561 5/16 (14258) 588 (14928)
NPF-990-VD 99 (30.2) 1188 573 3/8 (14563) 600 (15233)
NPF-1010-VD 101 (30.8) 1212 585 7/16 (14869) 612 (15539)
NPF-1030-VD 103 (31.4) 1236 597 7/16 (15175) 624 (15845)
