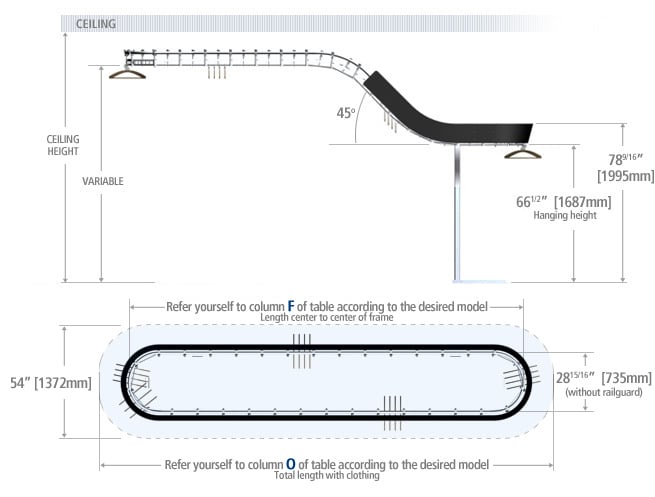

* Dimensions based on 12 feet ceiling
Multi-plan
From square feet to cubic feet! Our multi-plan conveyor will give you an opportunity to maximize your space by allowing you to store most of your garment at ceiling level. If your ceiling goes beyond 12 feet (3,65m) you will also be able to use the space underneath to work. The front part of the conveyor goes down to the floor level giving you the opportunity to load and unload your garment while the rest is higher occupying the unused space.
Model complete specifications
F* | O* | |||
Model | Hanging length Feet (m)* |
Approx. Garments capacity * | Machine Length Inches (mm) |
Total Length with garments Inches (mm) |
NPF-350-MD | 35 (10.7) | 420 | 174 7/16 (4431) | 201 (5101) |
NPF-370-MD | 37 (11.3) | 444 | 186 1/2 (4737) | 213 (5407) |
NPF-390-MD | 39 (11.9) | 468 | 198 9/16 (5043) | 225 (5713) |
NPF-410-MD | 41 (12.5) | 492 | 210 9/16 (5349) | 237 (6019) |
NPF-430-MD | 43 (13.1) | 516 | 222 5/8 (5655) | 249 (6325) |
NPF-450-MD | 45 (13.7) | 540 | 234 11/16 (5960) | 261 (6630) |
NPF-470-MD | 47 (14.3) | 564 | 246 11/16 (6266) | 273 (6936) |
NPF-490-MD | 49 (14.9) | 588 | 258 3/4 (6572) | 285 (7242) |
NPF-510-MD | 51 (15.5) | 612 | 270 13/16 (6878) | 297 (7548) |
NPF-530-MD | 53 (16.1) | 636 | 282 13/16 (7184) | 309 (7854) |
NPF-550-MD | 55 (16.8) | 660 | 294 7/8 (7490) | 321 (8160) |
NPF-570-MD | 57 (17.4) | 684 | 306 15/16 (7796) | 333 (8465) |
NPF-590-MD | 59 (18) | 708 | 318 15/16 (8101) | 345 (8771) |
NPF-610-MD | 61 (18.6) | 732 | 331 (8407) | 357 (9077) |
NPF-630-MD | 63 (19.2) | 756 | 343 1/16 (8713) | 369 (9383) |
NPF-650-MD | 65 (19.8) | 780 | 355 1/16 (9019) | 381 (9689) |
NPF-670-MD | 67 (20.4) | 804 | 367 1/8 (9325) | 393 (9995) |
NPF-690-MD | 69(21) | 828 | 379 3/16 (9631) | 406 (10301) |
NPF-710-MD | 71 (21.6) | 852 | 391 3/16 (9936) | 418 (10606) |
NPF-730-MD | 73 (22.2) | 876 | 403 1/4 (10242) | 430 (10912) |
NPF-750-MD | 75 (22.8) | 900 | 415 1/4 (10548) | 442 (11218) |
NPF-770-MD | 77 (23.5) | 924 | 427 5/16 (10854) | 454 (11524) |
NPF-790-MD | 79 (24.1) | 948 | 439 3/8 (11160) | 466 (11830) |
NPF-810-MD | 81 (24.7) | 972 | 451 3/8 (11466) | 478 (12136) |
NPF-830-MD | 83 (25.3) | 996 | 463 7/16 (11771) | 490 (12441) |
NPF-850-MD | 85 (25.9) | 1020 | 475 1/2 (12077) | 502 (12747) |
NPF-870-MD | 87 (26.5) | 1044 | 487 1/2 (12383) | 514 (13053) |
NPF-890-MD | 89 (27.1) | 1068 | 499 9/16 (12689) | 526 (13359) |
NPF-910-MD | 91 (27.7) | 1092 | 511 5/8 (12995) | 538 (13665) |
NPF-930-MD | 93 (28.3) | 1116 | 523 5/8 (13301) | 550 (13971) |
NPF-950-MD | 95 (28.9) | 1140 | 535 11/16 (13607) | 562 (14276) |
NPF-970-MD | 97 (29.6) | 1164 | 547 3/4 (13912) | 574 (14852) |
NPF-990-MD | 99 (30.2) | 1188 | 559 3/4 (14218) | 586 (14888) |
NPF-1010-MD | 101 (30.8) | 1212 | 571 13/16 (14524) | 598 (15194) |
NPF-1030-MD | 103 (31.4) | 1236 | 583 7/8 (14830) | 610 (15500) |
